在使用温度曲线测试仪时,应注意以下几点:
1) 测定时,必须使用已完全装配过的板。首先对印制板元器件进行热特性分析,由于印制板受热性能不同,元器件体积大小及材料差异等原因,各点实际受热升温不相同,找出比较热点、比较冷点,分别设置热电偶便可测量出比较高温度与比较低温度。
2) 尽可能多设置热电偶测试点,以求反映印制板各部分真实受热状态。例如印制板中心与边缘受热程度不一样,大体积元件与小型元件热容量不同及热敏感元件都必须设置测试点。
3) 热电偶探头外形微小,必须用指定高温焊料或胶粘剂固定在测试位置,否则受热松动,偏离预定测试点,引起测试误差。
其实，回流焊炉温曲线以及使用温度曲线测试仪时，目前市场上的回流焊大、中、小型号的都有，简易的有三温区的到八温区的，大型的有六温区到十六温区的。回流焊温区越大焊接的效果会越好，这个要根据客户的产品需求来定。
杭州欧海自动化设备有限公司是从事KIC炉温测试仪、布瑞得炉温测试仪，炉温跟踪的业界实力派，我们在SMT、电子、粉末涂料、油墨、汽车、塑胶、热处理、钢坯加热等众多行业拥有丰富的实战经验。
更多回流焊炉温测试仪产品知识或订购，均可联系欧海自动化！
When using the temperature curve tester, the following points should be noted:
1) The fully assembled plate must be used for measurement. First of all, the thermal characteristics of printed circuit board components are analyzed. Due to the different heating performance of printed circuit board, the volume and material differences of components, the actual heating temperature of each point is different. Find out the hottest point and the coldest point, and set thermocouples respectively to measure the maximum temperature and the minimum temperature.

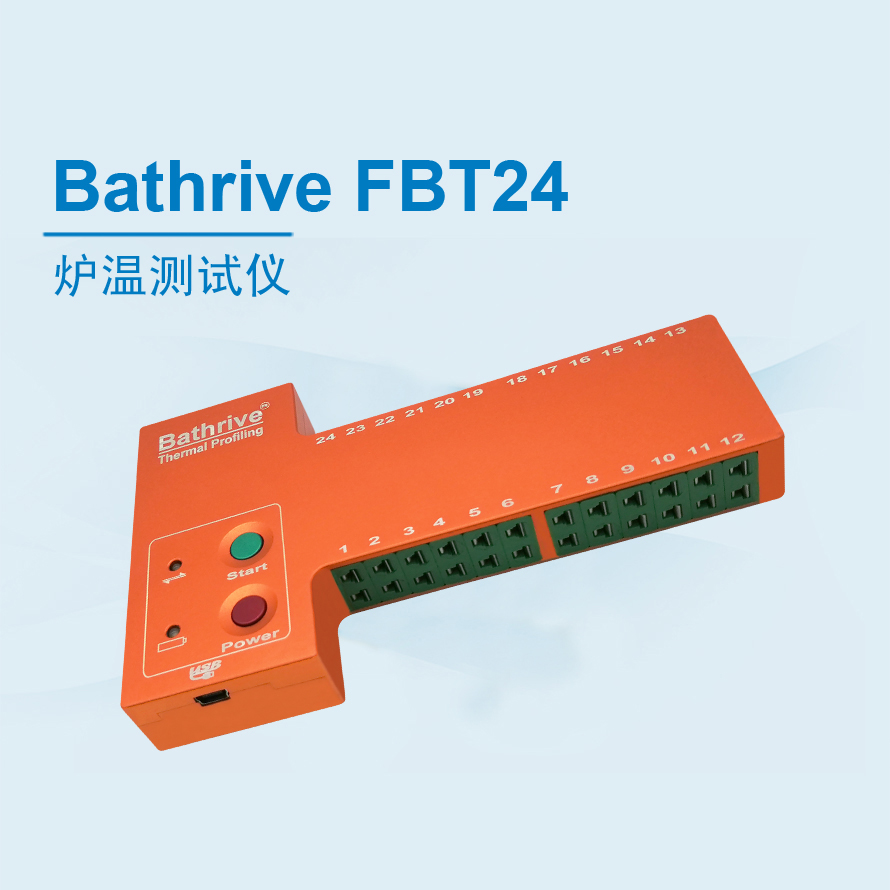

Reflow soldering furnace temperature tester
2) Thermocouple test points should be set as many as possible to fully reflect the real heating state of each part of PCB. For example, the heating degree of the center and the edge of the printed circuit board is different, the thermal capacity of the large volume components is different from that of the small components, and the test points must be set for the thermal sensitive components.
3) The thermocouple probe is small in shape, so it must be fixed in the test position with specified high temperature solder or adhesive, otherwise it will be loose when heated and deviate from the predetermined test point, resulting in test error.
In fact, when reflow oven temperature curve and temperature curve tester are used, there are large, medium and small models of reflow soldering on the market. The simple ones are from three temperature zone to eight temperature zone, and the large ones are from six temperature zone to sixteen temperature zone. The larger the reflow temperature zone, the better the welding effect. It depends on the customer's product demand.
Hangzhou Ouhai automation equipment Co., Ltd. is an industry strength group engaged in KIC furnace temperature tester, Brad furnace temperature tester and furnace temperature tracking. We have rich practical experience in SMT, electronics, powder coating, ink, automobile, plastic, heat treatment, billet heating and many other industries.
More reflow furnace temperature tester product knowledge or order, you can contact ohai automation!
